PC and SS304 Material Low Intensity Aviation Obstruction Solar Light

SHENZHEN ANHANG TECHNOLOGY CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

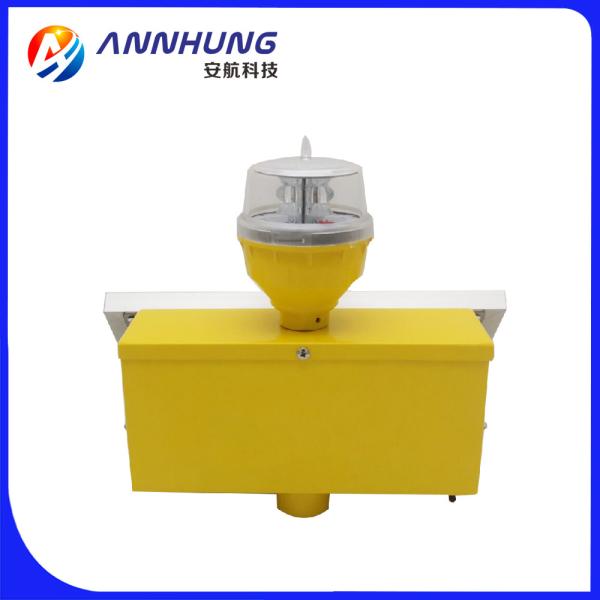

PC and SS304 Material Low Intensity Aviation Obstruction Solar Light

Brand Name : ANNHUNG

Model Number : AH-LS-A1

Certification : ICAO, ISO9001, CE,

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, Money Gram, L/C

Supply Ability : 1000 Pieces Per Month

Delivery Time : shipped in 3-15 days payment

Packaging Details : paper carton 1 piece/box

Color : Red

Products name : Low-intensity Solar Powered Aviation Light

Weight : 2KG

Working mode : Flashing or Steady-burinng

Light Intensity : ≥ 32.5cd

Name : PC and SS304 Material Low Intensity Aviation Obstruction Solar Light

Contact Now

PC and SS304 Material Low Intensity Aviation Obstruction Solar Light

Low intensity Solar Aviation Obstruction Light adopts low light but high efficient solar panels integrated design,cooperate with solar dedicated plumbic acid battery as power supply. The battery adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low,so it can improve the battery’s service life efficiently.

Lampshade adopts PC material,which can corrosion resistance, anti-UV anti-shock.

Datasheet download:download AH-LS-A1 LED Low-intensity L810 Solar Avi...

Product Application

-High-rise Building

-High Chimney

-marking towers (Telecom, GSM, Microwave & TV)

-High Pole

-Tower Crane

-Wind Turbinebridge

-large-scale port machinery

-large engineer machinery

-wind turbines

Packaging & Delivery

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.

After-sales service

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.

Product Descripton

SPECIFICATIONS AH-LS-LD LED Low-intensity L810 Double Aviation Obstruction Light
Light Characteristics
Light Source LED
Emitting Color Red
Intensity(cd) >32cd
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Flash Characteristics 20FPM(steady/other flashing rate is customized)
Operation Mode Main-standby, Dusk-to-Dawn operation
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 3.7
Circuit Protection Integrated
Solar Characteristics
Solar Module Type Mono crystalline Silicon
Output(watts) 3.6
Charging Regulation Microprocessor controlled
Battery Characteristics
Battery type Lithium ion battery
Nominal Voltage (V) 3.7
Battery Service Life Average 3 years
Autonomy (hours) Steady: 60, Flashing: 150(20fpm)
Physical Characteristics
Lamb Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Installation Size 3/4inch thread hole
Overall Size (mm) 330×162×240
Weight(kg) 2.5
Product Life Expectancy Average 5 years
Environmental Factors

Ambient Temperature(℃)

-55℃~+70℃

-35~70
Humidity 0~100%
Wind Speed 80m/s
Waterproof IP67
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
Operations’ Seventh edition July 2016, table 6.3
Low-intensity Type A/B/E Obstacle Light
FAA L-810
Optional

External battery charger

NVG - compatible infrared (IR) LED

Features

Electrical

l LED as light source, life experience >100,000hours

Physical

l With bird needle to prevent bird drop

l UV & vibrations protected polycarbonate lens for converging light

l Powder coated die casting aluminum base, light fastness, resist snow and rain

l Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

System design

l Built-in photocell (Photo diode) for day & night working mode (dusk to dawn mode)

l ON/OFF button make local control easy

l Main-standby mode

Optional

l Infrared LED for pilot using NVG(Night Vision Goggles)
